Whether it is Military, Aerospace, Defence or Commercial HBS Electronics has the capability and experience using the latest Technology equipment.

CUTTING EDGE SERVICES

HBS ELECTRONICS

Whether it is Military, Aerospace, Defence or Commercial HBS Electronics has the capability and experience using the latest Technology equipment to handle all your Electronic Design and Manufacturing needs. From one off prototype’s to full production runs and Box build HBS will deliver you quality products on time.

SURFACE MOUNT TECHNOLOGY

THROUGH HOLE ASSEMBLY

MECHATRONICS ASSEMBLY & TEST

BOX BUILD

PCB LAYOUT AND DESIGN

DESIGN FOR MANUFACTURE, TECHNICAL SUPPORT AND PROCUREMENT

RAPID PROTOTYPING AND 24 HOUR FAST TURN ROUND ASSEMBLY

Facility

At HBS modern newly equipped facility in Medstead Hampshire we offer the following services by our fully trained and vastly experienced team to IPC class 3 standards.



  • Surface Mount Technology

  • Through Hole Assembly

  • Mechatronics Assembly & Test

  • Box Build

  • PCB Layout and Design

  • Design for Manufacture, Technical Support and Procurement

  • Rapid prototyping and 24 hour fast turn round assembly

SMT Assembly

Covering conventional through-hole and surface-mount technologies, CEMS offers a wide range of stable assembly processes for all current component packages, including beam lead diodes, 0201’s, CSP/micro and BGA’s.

PCB Design

As Military, Aerospace and Commercial designers we can offer fast and cost effective design solutions for all your PCB requirements.

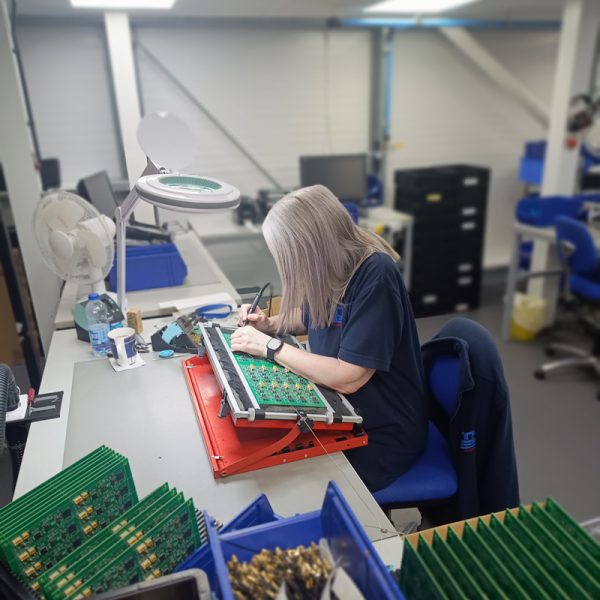

Through Hole Assembly

All through hole component assembly can be carried out in RoHS or Leaded to meet your industry sectors requirements to IPC class 1, 2 or 3.

Quality

Serving some of the most demanding industry sectors in the world, HBS has developed a culture of high quality and reliability in all aspects of the business within The MEL Group under ISO 9001:2015

Mechatronics Assembly

Our team has many years’ experience of building products having moving mechanical actions and integrated electronic mechatronics assemblies.

Box Build

HBS provides a full system assembly service for products of all shapes and sizes including hand held terminals, chassis and 19” cabinets, supplied fully tested and configured.

DFM Services

HBS offers a range of in-house design engineering services, including product miniaturisation, electronics and microelectronics; both analogue and digital, mechanical, mechatronics and mechanical CAD. To these services can be added a wider range of specialist design engineering capabilities by way of The MEL Group. HBS offers full new product design services.

Rapid Prototyping

The HBS facility in Hampshire provides a range of assembly services including rapid prototype assembly of PCB and system assemblies using consigned and procured materials. The plant also offers a range of manufacturing engineering and test engineering services.

Test & Diagnostics Services

  • Analogue In-Cct test
  • Digital In-Cct Test
  • JTAG
  • Combinational test
  • AOI

QUOTE

Assembly & Procurement Enquiry Format Requirements

Assembly & Procurement Enquiry Format Requirements
We welcome enquiries for PCB assembly, whether for assembly of free issue parts or for supply of your Bill of Materials (BOM). We have a team of experienced costing technicians waiting for your BOM pricing request.

We have accounts with all the major global component suppliers and distributors. We buy in bulk and the volume of our purchasing gives us enhanced pricing terms which we pass on to our clients.

How we price your BOM

We have developed some very efficient tools for pricing. Send your BOM as an Excel spreadsheet. We directly load an Excel format BOM template into our automated BOM pricing tool.

This searches online against each line of your BOM for part equivalence, availability, and best pricing. If the supplier or manufacturer part numbers are clear, then the search tool will return accurate results.

Any ambiguous part numbers are flagged for manual intervention and research.

How long BOM Pricing Takes

We aim to turnaround BOM pricing within 2 to 4 working days of receiving your BOM. Typically, 90% of the parts can be priced in this way very quickly, but we depend on timely supplier response for pricing the last few rare or bespoke items.

Consequently, we cannot give a definite undertaking on quote turnaround times, apart from our assurance that we will complete pricing as soon as we can.

Format for a BOM Quote

BOMS for quotation just need each line to identify the total number of each part type required and thus will be a much shorter document. It will be easier to handle and quicker to price.

The most important columns on a BOM will show the component manufacturer and the manufacturer’s part number. That is all we need to identify the component and it is this number with which we search across multiple part databases. Additionally, in order to cross reference the item, it can be helpful to have the Farnell, Mouser or Digikey distributor part number, but these are of course specific to a particular distributor. As a back-up, a part description is also helpful.

Whilst we price your BOM, we will be taking note of any hard to find parts, long lead-times, or obsolescence. We will liaise with you about any of these issues that reflect on our ability to manufacture your product. We will respect your instructions to use specific distributors or manufacturers, and we will suggest alternative parts and sourcing if significant savings are possible.

If your BOM is in PDF format, please convert it into Excel spreadsheet format before you send it. We can do the PDF to Excel conversion, but we would rather never see a BOM in xls format in the first place.

If you require us to procure your bare PCB’s for you then please send your gerbers with your BOM as a zip file.

h

REQUEST A QUOTE

Terms of use and Privacy policy

14 + 13 =

HBS NEWS

New SMT Facility Opens In Hampshire

New SMT Facility Opens In Hampshire

The MEL Group has opened its new Surface Mount Technology and PCB Design facility in Medstead Hampshire. The factory has a brand new Yamaha SMT line comprising of a YSP full vision printer which increases the quality of printing and eliminating miss prints due to the...

RF Real Time Oven Profiler

RF Real Time Oven Profiler

With the use of the Oven profiler we can accurately provide printed profiles for all boards manufactured at our facility. The Standard Profiler data logger unit is fitted with Six Type-K Thermocouple channels, offering unprecedented measurement accuracy. Using high...

HBS chooses leading ESD flooring for its new facility

HBS chooses leading ESD flooring for its new facility

ecotile ESD is a static dissipative flooring system, (also referred to as a conductive) designed to be used in areas were components or individuals need to be protected from the risk of electrostatic damage such as electronic sub-assembly areas or facilities where...
